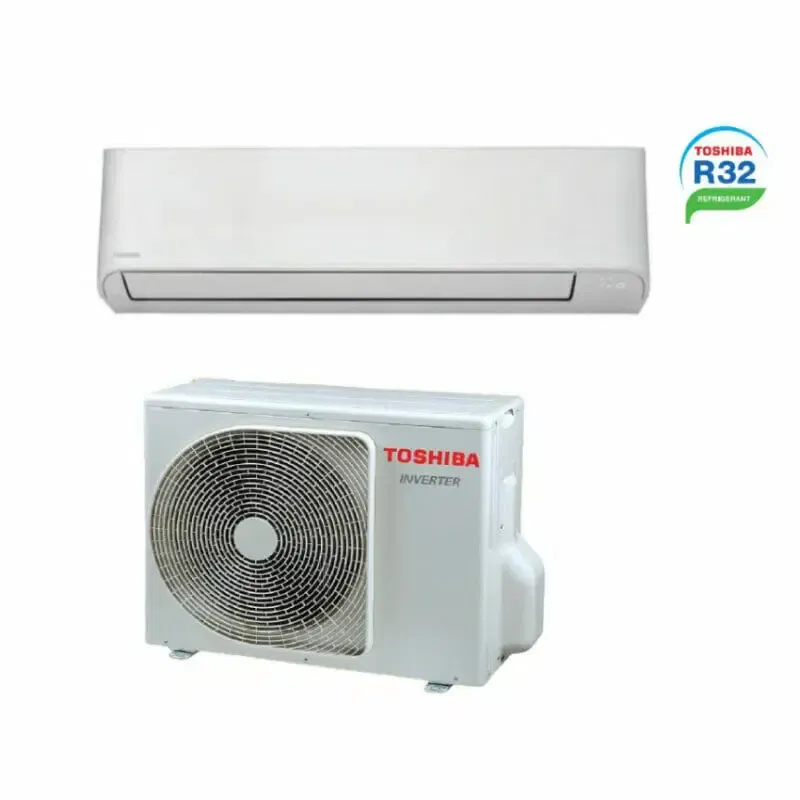

Toshiba Seiya Classic RAS-10E2KVG-A 2.5kW Reverse Cycle Inverter Split System Air Conditioner

Specifications

Indoor

RAS-10E2KV2G-A

Outdoor

RAS-10E2AVG-A

Cooling Capacity – Rated · CO · kW

2.50

Cooling Capacity – Range · CO · kW

1.05 – 3.60

Power input [rated (min – max)] · CO · kW

0.60 (0.23 – 1.15)

Operating current [rated (min – max)] · CO · A

3.00 (1.26 – 5.50)

AEER · CO

4.04

Heating Capacity – Rated · RC · kW

3.20

Heating Capacity – Range · RC · kW

1.00 – 4.80

Power input [rated (min – max)] · RC · kW

0.75 (0.20 – 1.40)

Operating current [rated (min – max)] · RC · A

3.70 (1.08 – 6.60)

ACOP · RC

4.14

Airflow Volume (High/Mid/Low) · CO · m³/hr

710/480/280

Mositure removal · l/hr

1.30

Dimension (WxLxH) · mm

293 x 798 x 230

Net Weight · kg

9

Sound Power at Cooling Operation (high) · CO · dB

57

Dimension (WxLxH) · mm

290 x 780 x 550

Net Weight · kg

26

Cooling Operating range (Outside) · CO · ◦C

-10 ~ 46

Heating Operating range · RC · ◦C

-15 ~ 24

Sound Power at Cooling Operation (high) · CO · dB

64

Liquid Side · (mm)

6.35

Gas Side · (mm)

9.52
