SamsungSplit System2.5 kW

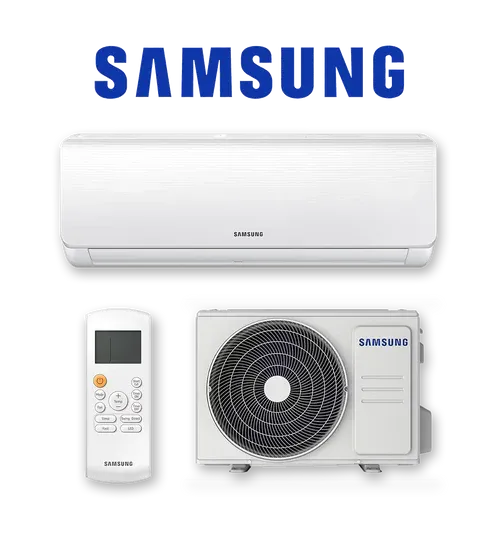

Samsung 2.5kW Bedarra Wall Mounted Split System Air Conditioner | R32 | AR09AXHQAWKNSA
- The Samsung Bedarra series split system is the air conditioner built for Australian conditions.
- 2.48kW Cooling / 3.24kW Heating
- Reverse Cycle
- Fast Cooling – Cool down fast and efficiently
- Good Sleep Mode – Create your preferred climate for a good nights sleep
- Easy Filter Plus – Protect against airborne contaminants
Please contact us on orders@kingair.com.au for pricing and delivery.
Specifications
- Brand
- Samsung
- Colour
- White
- Features
- ✓ Fast Cooling ✓ Fan Mode ✓ Good Sleep Mode ✓ Auto Mode
- Type
- Standard
- Installation
- Standard
- Model Number
- AR09AXHQAWKNSA
- Indoor Product Code
- AR09AXHQAWKNSA
- Outdoor Product Code
- AR09AXHQAWKXSA
- Indoor Unit Dimensions HxWxD (mm)
- 297 x 802 x 189
- Outdoor Unit Dimensions HxWxD (mm)
- 555 x 765 x 303
- Manufacturer Warranty
- 5 Years
- Cooling Capacity
- 2.48kW
- Heating Capacity
- 3.24kW
- Capacity (Cooling, Min – Max)
- 1.0-2.9 kW
- Capacity (Heating, Min – Max)
- 1.3-3.8 kW
- AEER (Cooling)
- 4.65 W/W
- ACOP (Heating)
- 4.57 W/W
- EER (Std, Cooling)
- 4.68 W/W
- COP (Std, Heating)
- 4.60 W/W
- COP (Heating, Btu/hW)
- 15.68 Btu/hW
- Sound Pressure Level (Indoor, High / Low)
- 46/26 dBA
- Sound Pressure Level (Outdoor)
- 51 dBA
- Power Source (V/Hz/Ph)
- 1 / 220-240 / 50
- Power Input (Cooling / Heating)
- 530 W
- Current Input (Cooling)
- 3.54 A
- Current Input (Heating)
- 3.17 A
- Net Unit Weight (Indoor)
- 8.7 kg
- Net Unit Weight (Outdoor)
- 26.9 kg
- Piping Length (Max)
- 25 m
- Piping Height (Max)
- 10 m
- Connection Size (Liquid, OD) mm
- 6.35
- Connection Size (Suction) mm
- 9.52
- Refrigerant (Type)
- R32
- Operating Temperature Range (Cooling)
- 0~50 °C
- Operating Temperature Range (Heating)
- -15~30 °C
- Auto Mode
- Yes
- Fast Cool
- Yes
- Good Sleep
- Yes
- Dehumidification
- Yes
- Fan Mode
- Yes
- Quiet Mode
- No
- Air Direction Control (Up/Down)
- Auto
- Air Direction Control (Left/Right)
- Manual
- Air Flow Speeds (Cool/Fan)
- 3/3
- SmartThings
- No
- Smart Check
- No
- Smart Service
- Yes
- Remote Controller
- Yes
- Auto Restart
- Yes
- Smart WiFi Embedded
- No
- SmartThings App Support
- No
