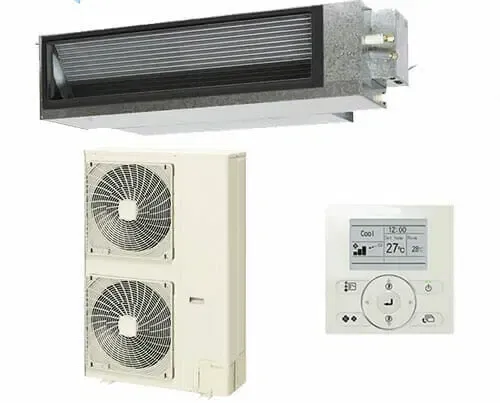

DAIKIN FDYQN200LC-MY 19.5kW Inverter Ducted Air Conditioner System 3 Phase
DaikinDucted19.5 kW

DAIKIN FDYQN200LC-MY 19.5kW Inverter Ducted Air Conditioner System 3 Phase

  • 19.5 kW Cooling | 22.4 kW Heating
  • Daikin FDYQN200LC-MY Inverter Ducted Air Conditioner System 3 Phase
  • Includes Indoor – FDYQN200LCV1 | Outdoor – RZQ200MY1
  • Available Controllers
  • Included : BRC1E63 – Standard Nav Ease Controller
  • Optional
Enquire to order02 6298 1244

Please contact us on orders@kingair.com.au for pricing and delivery.

Specifications

INDOOR UNIT
FDYQN200LCV1
OUTDOOR UNIT
RZQ200MY1
Rated Capacity · Cool (kW)
19.5
Heat (kW)
22.4
Capacity Range · Cool (kW)
10.1-19.5
Heat (kW)
11.2-22.4
Power Input (Rated) · Cool (kW)
6.11
Heat (kW)
6.85
E.E.R/C.O.P · C/H
3.19/3.27
TCSPF (Residential) · Hot/Average/ Cold
3.57/3.14/3.11
HSPF (Residential) · Hot/Average/ Cold
3.25/2.97/2.63
Airflow Rate (Nominal/Max) · l/s
1400/1600
Indoor Sound Level (H) @ 1.5m · dBA (C/H)
46.0/46.0
Piping Length · m
50
Indoor Fan Speeds
H/M/L
Dimensions (HxWxD) · Indoor (mm)
470x1400x997
Outdoor (mm)
1430x940x320
Weight · Indoor (kg)
85
Outdoor (kg)
138
Power Supply · V/Hz
3 Phase, 380-415V, 50Hz
Compressor Type
Hermetically Sealed Scroll Type
Refrigerant
R410A
Pipe Sizes · Liquid (mm)
9.5 (Brazed)
Gas (mm)
19.1 (Brazed)
