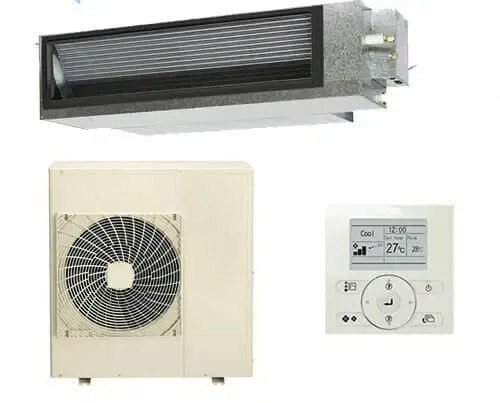

DAIKIN FDYAN160A-C2V 15.5kW Inverter Ducted Air Conditioner System | 1 Phase

DaikinDucted15.5 kW

DAIKIN FDYAN160A-C2V 15.5kW Inverter Ducted Air Conditioner System | 1 Phase

15.5 kW Cooling | 18.0 kW Heating
Includes Indoor Unit – FDYAN160AV1
Outdoor Unit – RZA160C2V1
Included controller: BRC1E63 – Standard Nav Ease Controller

Enquire to order 02 6298 1244

Please contact us on orders@kingair.com.au for pricing and delivery.

Specifications

INDOOR UNIT: FDYAN160AV1
OUTDOOR UNIT: RZA160CV1
Rated Capacity · Cool (kW): 15.5
Heat (kW): 18.0
Capacity Range · Cool (kW): 7.3-16.3
Heat (kW): 7.3-18.2
Power Input (Rated) · Cool (kW): 4.95
Heat (kW): 4.90
E.E.R/C.O.P · C/H: 3.13/3.67
TCSPF (Residential) · Hot/Average/ Cold: 4.05/3.76/3.87
HSPF (Residential) · Hot/Average/ Cold: 3.87/3.53/3.12
Airflow Rate (Nominal/Max) · l/s: 950/1120
Indoor Sound Level (H) @ 1.5m · dBA (C/H): 47.9/50.7
Piping Length · m: 50
Indoor Fan Speeds: H/M/L
Dimensions (HxWxD) · Indoor (mm): 360x1520x935
Outdoor (mm): 1430x940x320
Weight · Indoor (kg): 55
Outdoor (kg): 78
Power Supply · V/Hz: 1 Phase, 220-240V, 50Hz
Compressor Type: Hermetically Sealed Swing Type
Refrigerant: R32
Pipe Sizes · Liquid (mm): 9.5 (Flare)
Gas (mm): 15.9 (Flare)
